LINEAR MOTION SERIES

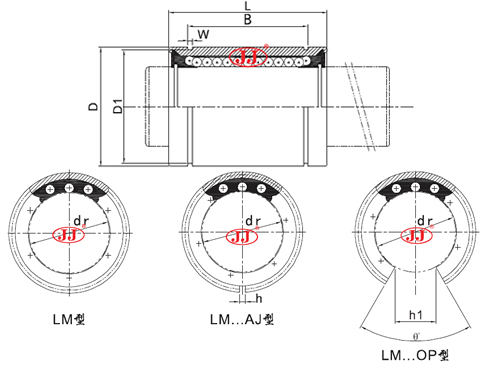

LINAR MOTION BALL BEARINGS > LM 3UU...LM 35UU LM5UUAJ...LM150UUAJ LM12UUOP...LM150UUOP

Intact	Specification and model		Gap adjustment	Opening	Main inscribed circle diameter dr			Main outer diameter D		Size (mm)											Radial clearance admissible value(μm)	Basic rated load		Inventory
Intact	Number of steel ball rows	Weight(g)	Gap adjustment	Opening	Inscribed circle diameter	Allowance precise	Allowance height	Outer diameter	Allowance precise·height	length L	length L allowance	Length B	Length B Admissible deviation	W	D1	h	h1	θ	Decentration(maximum)μm precise	Decentration(maximum)μm high	Radial clearance admissible value(μm)	C N	Co N	Inventory
LM3UU	4	1.4	-	-	3	0 -0.005	0 -0.008	7	0 -0.009	10	0 -0.12	-	-	-	-	-	-	-	4	8	-2	88.2	108	√
LM4UU	4	1.9	-	-	4	0 -0.005	0 -0.008	8	0 -0.009	12	0 -0.12	-	-	-	-	-	-	-	4	8	-3	88.2	127	√
LM5UU	4	4	LM5UUAJ	-	5	0 -0.005	0 -0.008	10	0 -0.009	15	0 -0.12	10.2	0 -0.2	1.1	9.6	-	-	-	4	8	-3	167	206	√
LM6UU	4	8	LM6UUAJ	-	6	0 -0.006	0 -0.009	12	0 -0.011	19	0 -0.2	13.5	0 -0.2	1.1	11.5	1	-	-	8	12	-5	206	265	√
LM8SU	4	11	LM8SUAJ	-	8	0 -0.006	0 -0.009	15	0 -0.011	17	0 -0.2	11.5	0 -0.2	1.1	14.3	1	-	-	8	12	-5	176	225	√
LM8UU	4	16	LM8UUAJ	-	8	0 -0.006	0 -0.009	15	0 -0.011	24	0 -0.2	17.5	0 -0.2	1.1	14.3	1	-	-	8	12	-5	265	402	√
LM10UU	4	30	LM10UUAJ	-	10	0 -0.006	0 -0.009	19	0 -0.013	29	0 -0.2	22	0 -0.2	1.3	18	1	-	-	8	12	-5	373	549	√
LM12UU	5	31.5	LM12UUAJ	LM12UUOP	12	0 -0.006	0 -0.009	21	0 -0.013	30	0 -0.2	23	0 -0.2	1.3	20	1.5	8	80°	8	12	-5	412	598	√
LM13UU	5	43	LM13UUAJ	LM13UUOP	13	0 -0.006	0 -0.009	23	0 -0.013	32	0 -0.2	23	0 -0.2	1.3	22	1.5	9	80°	8	12	-7	510	775	√
LM16UU	5	69	LM16UUAJ	LM16UUOP	16	0 -0.006	0 -0.009	28	0 -0.013	37	0 -0.2	26.5	0 -0.2	1.6	27	1.5	11	80°	8	12	-7	775	1180	√
LM20UU	5	87	LM20UUAJ	LM20UUOP	20	0 -0.007	0 -0.010	32	0 -0.016	42	0 -0.2	30.5	0 -0.2	1.6	30.5	1.5	11	60°	10	15	-9	863	1370	√
LM25UU	6	220	LM25UUAJ	LM25UUOP	25	0 -0.007	0 -0.010	40	0 -0.016	59	0 -0.3	41	0 -0.3	1.85	38	2	12	50°	10	15	-9	980	1570	√
LM30UU	6	250	LM30UUAJ	LM30UUOP	30	0 -0.007	0 -0.010	45	0 -0.016	64	0 -0.3	44.5	0 -0.3	1.85	43	2.5	15	50°	10	15	-9	1570	2750	√
LM35UU	6	390	LM35UUAJ	LM35UUOP	35	0 -0.008	0 -0.012	52	0 -0.019	70	0 -0.3	49.5	0 -0.3	2.1	49	2.5	17	50°	12	20	-13	1670	3140	√
LM40UU	6	585	LM40UUAJ	LM40UUOP	40	0 -0.008	0 -0.012	60	0 -0.019	80	0 -0.3	60.5	0 -0.3	2.1	57	3	20	50°	12	20	-13	2160	4020	√
LM50UU	6	1580	LM50UUAJ	LM50UUOP	50	0 -0.008	0 -0.012	80	0 -0.019	100	0 -0.3	74	0 -0.3	2.6	76.5	3	25	50°	12	20	-13	3820	7940	√
LM60UU	6	2000	LM60UUAJ	LM6OUUOP	60	0 -0.009	0 -0.015	90	0 -0.022	110	0 -0.3	85	0 -0.3	3.15	86.5	3	30	50°	17	25	-16	4710	10000	√
LM80UU	6	4520	LM80UUAJ	LM8OUUOP	80	0 -0.009	0 -0.015	120	0 -0.022	140	0 -0.3	105.5	0 -0.3	4.15	116	3	40	50°	17	25	-16	7350	16000	√
LM100UU	6	8600	LM100UUAJ	LM100UUOP	100	0 -0.010	0 -0.020	150	0 -0.025	175	0 -0.4	125.5	0 -0.4	4.15	145	3	50	50°	20	30	-20	14100	38400	○
LM120UU	8	15000	LM120UUAJ	LM120UUOP	120	0 -0.010	0 -0.020	180	0 -0.025	200	0 -0.4	158.5	0 -0.4	4.15	175	4	85	80°	20	30	-25	16400	40000	○
LM150UU	8	20250	LM150UUAJ	LM150UUOP	150	0 -0.013	0 -0.025	210	0 -0.029	240	0 -0.4	170.6	0 -0.4	5.15	204	4	105	80°	25	40	-30	21100	54300	○
