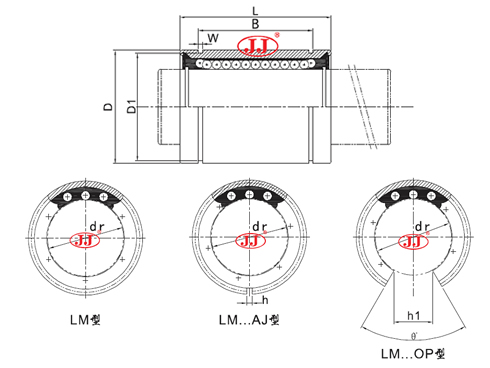

| LME seriesModel | LMEseriesNumber of ball rows | Large opening Type | Large opening number of ball rows | regulating type(small opening) Type | Aegulating type(small opening) number of ball rows | BASIC LOAD RATING | INSCRIBED CIRCLE DIAMETER | Dimensions(mm) | Weight(g) | Radial clearance Tolerances(um) | Inventory | ||||||||||||
| DynamicC(N) | StaticCo(N) | dr(mm) | Tolerances(μm) | Outer diameter Dmm | Outer diameter DTolerances(um) | Length Lmm | Length LTolerances(mm) | Bmm | BTolerancesmm) | W | D1 | h | h1 | θ | |||||||||
| LME5UU | 4 | - | - | LME 5UUAJ | 4 | 200 | 260 | 5 | +8 0 | 12 | 0 -8 | 22 | 0 -0.2 | 14.5 | 0 -0.2 | 1.1 | 11.5 | 1 | - | - | 12 | -5 | √ |
| LME8UU | 4 | - | - | LME 8UUAJ | 4 | 260 | 400 | 8 | +8 0 | 16 | 0 -8 | 25 | 0 -0.2 | 16.5 | 0 -0.2 | 1.1 | 15.2 | 1 | - | - | 20 | -5 | √ |
| LME12UU | 4 | - | - | LME 12UUAJ | 4 | 500 | 770 | 12 | +8 0 | 22 | 0 -9 | 32 | 0 -0.2 | 22.9 | 0 -0.2 | 1.3 | 21 | 1.5 | - | - | 41 | -7 | √ |
| LME16UU | 5 | LME 16UUOP | 4 | LME 16UUAJ | 5 | 570 | 890 | 16 | +9 -1 | 26 | 0 -9 | 36 | 0 -0.2 | 24.9 | 0 -0.2 | 1.3 | 24.9 | 1.5 | 10 | 78° | 57 | -7 | √ |
| LME20UU | 5 | LME 20UUOP | 4 | LME 20UUAJ | 5 | 860 | 1370 | 20 | +9 -1 | 32 | 0 -11 | 45 | 0 -0.2 | 31.5 | 0 -0.2 | 1.6 | 30.3 | 2 | 10 | 60° | 91 | -9 | √ |
| LME25UU | 6 | LME 25UUOP | 5 | LME 25UUAJ | 6 | 980 | 1560 | 25 | +11 -1 | 40 | 0 -11 | 58 | 0 -0.3 | 44.1 | 0 -0.3 | 1.85 | 37.5 | 2 | 12.5 | 60° | 215 | -9 | √ |
| LME30UU | 6 | LME 30UUOP | 5 | LME 30UUAJ | 6 | 1560 | 2740 | 30 | +11 -1 | 47 | 0 -11 | 68 | 0 -0.3 | 52.1 | 0 -0.3 | 1.85 | 44.5 | 2 | 12.5 | 50° | 325 | -9 | √ |
| LME40UU | 6 | LME 40UUOP | 5 | LME 40UUAJ | 6 | 2150 | 4010 | 40 | + 13 -2 | 62 | 0 -13 | 80 | 0 -0.3 | 60.6 | 0 -0.3 | 2.15 | 59 | 3 | 16.8 | 50° | 705 | -13 | √ |
| LME50UU | 6 | LME 50UUOP | 5 | LME 50UUAJ | 6 | 3820 | 7930 | 50 | + 13 -2 | 75 | 0 -13 | 100 | 0 -0.3 | 77.6 | 0 -0.3 | 2.65 | 72 | 3 | 21 | 50° | 1130 | -13 | √ |
| LME60UU | 6 | LME 6OUUOP | 5 | LME 60UUAJ | 6 | 4700 | 9990 | 60 | + 13 -2 | 90 | 0 -15 | 125 | 0 -0.4 | 101.7 | 0 -0.4 | 3.15 | 86.5 | 3 | 27.2 | 50° | 2220 | -16 | √ |
| LME80UU | 6 | LME 80UUOP | 5 | LME 80UUAJ | 6 | 10192 | 17640 | 80 | +16 -4 | 120 | 0 -15 | 165 | 0 -0.4 | 133.7 | 0 -0.4 | 4.15 | 116 | 3 | 36.3 | 50° | 5000 | -20 | √ |
