LINEAR MOTION SERIES

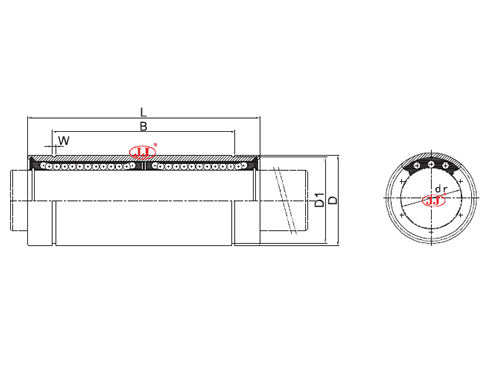

Model No.	NUMBER OF BALL ROWS	MAIN DIMENISONS									W	EOOENTIRICITY (MAX.)	BASIC LOAD RATING		Inventory
Model No.	NUMBER OF BALL ROWS	INSCRIBED CIRCLE DIAMETER dr	INSCRIBED CIRCLE DIAMETER TOLERANCE	OUTER DIAMETER D	OUTER DIAMETER Tolerances	LENGTH L	LENGTH TOLERANCE	OUTER LOCKING GROOVE B	OUTER LOCKING GROOVE TOLERANCE	OUTER LOCKING GROOVE D1	W	EOOENTIRICITY (MAX.)	DYNAMIC C(kgf)	STATIC CO(kgf)	Inventory
LMB04L	3	1/4" 6.35	0 -0.010	0.5" 12.7	0 -0.013	1.375" 34.925	0 -0.30	1.022" 25.959	0 -0.30	0.4687" 11.906	0.039" 0.992	0.015	33	54	○
LMB06L	4	3/8" 9.525	0 -0.010	0.625" 15.875	0 -0.016	1.5938" 40.481	0 -0.30	1.2716" 32.298	0 -0.30	0.588" 14.935	0.039" 0.992	0.015	36	64	○
LMB08L	4	1/2" 12.7	0 -0.010	0.875" 22.225	0 -0.016	2.375" 60.325	0 -0.30	1.925" 48.895	0 -0.30	0.8209" 20.853	0.0459" 1.168	0.015	83	160	○
LMB10L	4	5/8" 15.875	0 -0.010	1.125" 28.575	0 -0.016	2.8125" 71.438	0 -0.30	2.2079" 56.08	0 -0.30	1.0590" 26.899	0.0559" 1.422	0.015	126	240	○
LMB12L	5	3/4" 19.05	0 -0.012	1.25" 31.75	0 -0.019	3.0937" 78.581	0 -0.30	2.3314" 59.218	0 -0.30	1.176" 29.87	0.0559" 1.422	0.020	140	280	○
LMB16L	5	1" 25.4	0 -0.012	1.5625" 39.688	0 -0.019	4.2831" 108.744	0 -0.40	3.5094" 89.139	0 -0.40	1.4687" 37.306	0.0679" 1.727	0.020	160	320	○
LMB20L	6	1-1/4" 31.75	0 -0.015	2" 50.8	0 -0.022	5" 127	0 -0.40	4.0094" 101.839	0 -0.40	1.8859" 47.904	0.0679" 1.727	0.025	255	560	○
LMB24L	6	1-1/2" 38.1	0 -0.015	2.375" 60.325	0 -0.022	5.6875" 144.463	0 -0.40	4.8236" 122.519	0 -0.40	2.2389" 56.87	0.0859" 2.184	0.025	350	820	○
LMB32L	6	2" 50.8	0 -0.015	3" 76.2	0 -0.025	7.75" 196.85	0 -0.40	6.3834" 162.138	0 -0.40	2.8379" 72.085	0.1029" 2.616	0.030	620	1622	○
