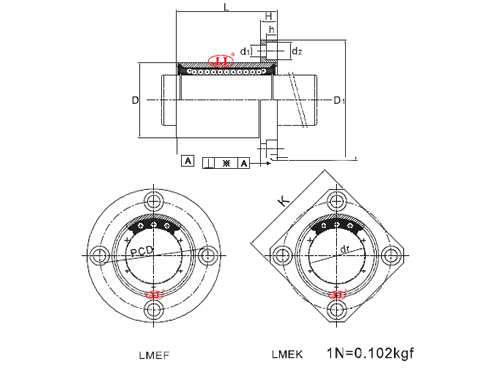

| Model No. | NUMBER OF BALL ROWS | Weight★(gf) | Allowable diameterTolerances(μm) | Base load factor | Diameter | Dimensions(mm) | Inventory | |||||||||||||
| LMF-L | LMK | DynamicC(N) | StaticCo(N) | dr(mm) | Tolerances(μm) | Outer diameterD | Outer diameter DTolerances(mm) | Length L | Length LTolerances(mm) | D1 | D1Tolerances(mm) | H | PCDK | K | Straight angle※(μm) | d1×d2×h | ||||
| LMEF8UU | LMEK8UU | 4 | 44 | -5 | 260 | 400 | 8 | +8 0 | 16 | 0 -8 | 25 | 0 -0.2 | 32 | 0 -0.2 | 5 | 24 | 25 | 12 | 3.4×6.5×3.3 | ○ |
| LMEF12UU | LMEK12UU | 4 | 86 | -5 | 500 | 770 | 12 | +8 0 | 22 | 0 -9 | 32 | 0 -0.2 | 42 | 0 -0.2 | 6 | 32 | 32 | 12 | 4.5×8×4.4 | ○ |
| LMEF16UU | LMEK16UU | 5 | 120 | -7 | 570 | 890 | 16 | +9 -1 | 26 | 0 -9 | 36 | 0 -0.2 | 46 | 0 -0.2 | 6 | 36 | 35 | 12 | 4.5×8×4.4 | ○ |
| LMEF20UU | LMEK20UU | 5 | 184 | -9 | 860 | 1370 | 20 | +9 -1 | 32 | 0 -11 | 45 | 0 -0.2 | 54 | 0 -0.2 | 8 | 43 | 42 | 15 | 5.5×9.5×5.4 | ○ |
| LMEF25UU | LMEK25UU | 6 | 335 | -9 | 980 | 1560 | 25 | +11 -1 | 40 | 0 -11 | 58 | 0 -0.3 | 62 | 0 -0.3 | 8 | 51 | 50 | 15 | 5.5×9.5×5.4 | ○ |
| LMEF30UU | LMEK30UU | 6 | 545 | -9 | 1560 | 2740 | 30 | +11 -1 | 47 | 0 -11 | 68 | 0 -0.3 | 76 | 0 -0.3 | 10 | 62 | 60 | 15 | 6.6×11×6.5 | ○ |
| LMEF40UU | LMEK40UU | 6 | 1185 | -13 | 2150 | 4010 | 40 | +13 -2 | 62 | 0 -13 | 80 | 0 -0.3 | 98 | 0 -0.3 | 13 | 80 | 75 | 20 | 9×14×8.6 | ○ |
| LMEF50UU | LMEK50UU | 6 | 1730 | -13 | 3820 | 7930 | 50 | +13 -2 | 75 | 0 -13 | 100 | 0 -0.3 | 112 | 0 -0.3 | 13 | 94 | 88 | 20 | 9×14×8.6 | ○ |
| LMEF60UU | LMEK60UU | 6 | 3180 | -16 | 4700 | 9990 | 60 | +13 -2 | 90 | 0 -15 | 125 | 0 -0.4 | 134 | 0 -0.3 | 18 | 112 | 106 | 25 | 11×17.5×10.8 | ○ |
