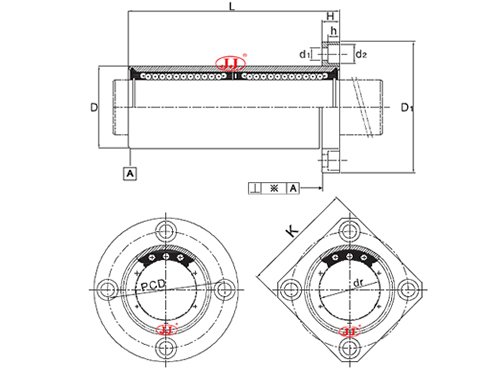

| Model No. | NUMBER OF BALL ROWS | Weight★(gf) | Allowable diameterTolerances(μm) | Base load factor | Diameter | Dimensions(mm) | Inventory | |||||||||||||
| LMF-L king-size | LMK king-size | DynamicC(N) | StaticCo(N) | dr(mm) | Tolerances dr(μm) | Outer diameter D(mm) | Outer diameter DTolerances(μm) | Length L(mm) | Length LTolerances(mm) | D1(mm) | D1Tolerances(mm) | H | PCD | K | Straight angle※(μm) | d1×d2×h | ||||
| LMEF8LUU | LMEK8LUU | 4 | 53 | -5 | 430 | 780 | 8 | +9 -1 | 16 | 0 -9 | 45 | 0 -0.3 | 32 | 0 -0.2 | 5 | 24 | 25 | 15 | 3.4×6.5×3.3 | ○ |
| LMEF12LUU | LMEK12LUU | 4 | 100 | -5 | 650 | 1200 | 12 | +9 -1 | 22 | 0 -11 | 57 | 0 -0.3 | 42 | 0 -0.2 | 6 | 32 | 32 | 15 | 4.5×8×4.4 | ○ |
| LMEF16LUU | LMEK16LUU | 5 | 187 | -7 | 1230 | 2350 | 16 | +11 -1 | 26 | 0 -11 | 70 | 0 -0.3 | 46 | 0 -0.2 | 6 | 36 | 35 | 15 | 4.5×8×4.4 | ○ |
| LMEF20LUU | LMEK20LUU | 5 | 260 | -9 | 1400 | 2750 | 20 | +11 -1 | 32 | 0 -13 | 80 | 0 -0.3 | 54 | 0 -0.2 | 8 | 43 | 42 | 17 | 5.5×9.5×5.4 | ○ |
| LMEF25LUU | LMEK25LUU | 6 | 515 | -9 | 1560 | 3140 | 25 | +13 -2 | 40 | 0 -13 | 112 | 0 -0.4 | 62 | 0 -0.2 | 8 | 51 | 50 | 17 | 5.5×9.5×5.4 | ○ |
| LMEF30LUU | LMEK30LUU | 6 | 655 | -9 | 2490 | 5490 | 30 | +13 -2 | 47 | 0 -13 | 123 | 0 -0.4 | 76 | 0 -0.2 | 10 | 62 | 60 | 17 | 6.6×11×6.5 | ○ |
| LMEF40LUU | LMEK40LUU | 6 | 1560 | -13 | 3430 | 8040 | 40 | +16 -4 | 62 | 0 -15 | 154 | 0 -0.4 | 98 | 0 -0.3 | 13 | 80 | 75 | 20 | 9×14×8.6 | ○ |
| LMEF50LUU | LMEK50LUU | 6 | 3500 | -13 | 6080 | 15900 | 50 | +16 -4 | 75 | 0 -15 | 192 | 0 -0.4 | 112 | 0 -0.3 | 13 | 94 | 88 | 20 | 9×14×8.6 | ○ |
| LMEF60LUU | LMEK60LUU | 6 | 4500 | -16 | 7650 | 20000 | 60 | +16 -4 | 90 | 0 -20 | 211 | 0 -0.4 | 134 | 0 -0.3 | 18 | 112 | 106 | 25 | 11×17.5×10.8 | ○ |
