Kit-screw Guide
|
Model NO.
|

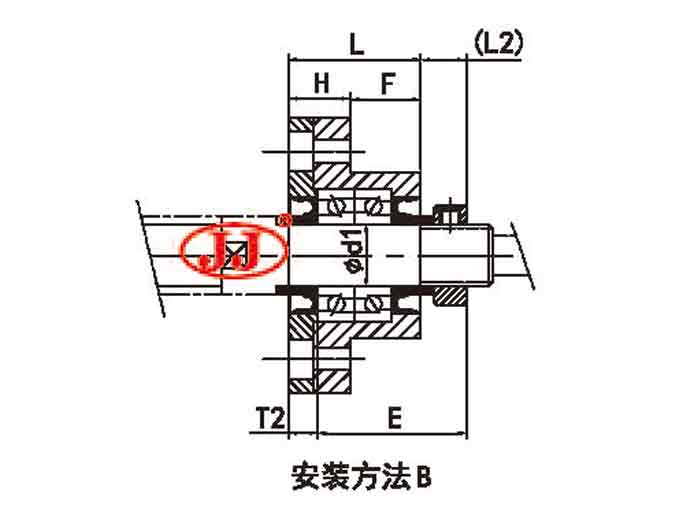

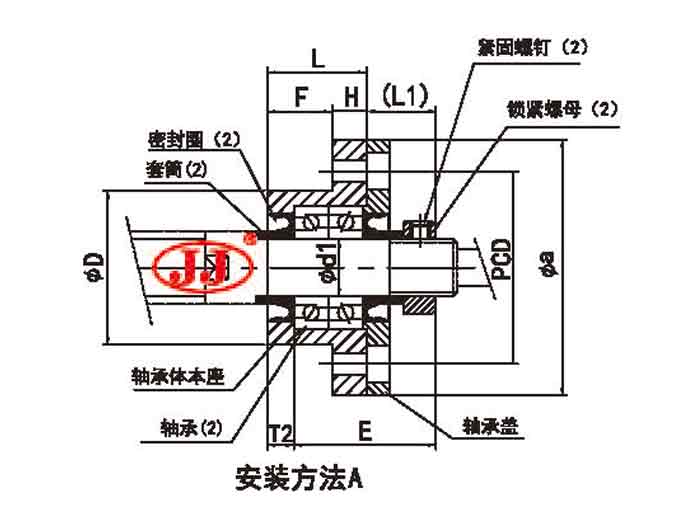

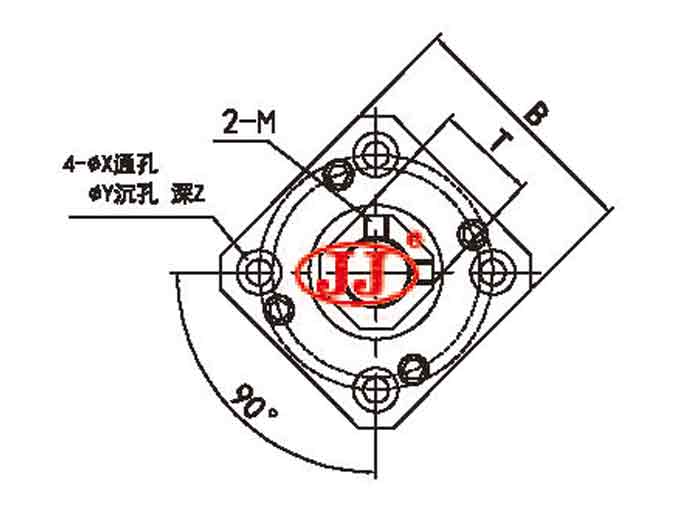

diameter
|
Dimensions of Assembly
|
| d1 |
L |
H |
F |
E |
Dg6 |
a |
PCD |
B |
L1 |
T1 |
L2 |
T2 |
X |
Y |
Z |
M |
T |
Stock |
|
FF5
|
6/8
|
5
|
16.5
|
6
|
10.5
|
18.5
|
20
|
34
|
26
|
26
|
5.5
|
3.5
|
7
|
5
|
3.4
|
6.5
|
4
|
M3
|
11
|
○
|
|
FF6
|
6/8/10
|
6
|
20
|
7
|
13
|
22
|
22
|
36
|
28
|
28
|
5.5
|
3.5
|
8.5
|
6.5
|
3.4
|
6.5
|
4
|
M3
|
12
|
○
|
|
FF8
|
8/10/12
|
8
|
23
|
9
|
14
|
26
|
28
|
43
|
35
|
35
|
7
|
4.7
|
10
|
7
|
3.4
|
6.5
|
4
|
M3
|
14
|
○
|
|
FF10
|
12/14/15
|
10
|
27
|
10
|
17
|
29.5
|
34
|
52
|
42
|
42
|
7.5
|
5
|
8.5
|
6
|
4.5
|
8
|
4
|
M3
|
16
|
○
|
|
FF12
|
14/15/16
|
12
|
27
|
10
|
17
|
29.5
|
36
|
54
|
44
|
44
|
7.5
|
5
|
8.5
|
6
|
4.5
|
8
|
4
|
M4
|
19
|
○
|
|
FF15
|
18/20
|
15
|
32
|
15
|
177
|
36
|
40
|
63
|
50
|
52
|
10
|
6
|
12
|
8
|
5.5
|
9.5
|
6
|
M4
|
22
|
○
|
|
FF17
|
20/25
|
17
|
45
|
22
|
23
|
47
|
50
|
77
|
62
|
61
|
11
|
9
|
14
|
12
|
6.6
|
11
|
9
|
M4
|
24
|
○
|
|
FF20
|
25/28
|
20
|
52
|
22
|
30
|
50
|
57
|
85
|
70
|
68
|
8
|
10
|
12
|
14
|
6.6
|
11
|
9
|
M4
|
30
|
○
|
|
FF25
|
32/36
|
25
|
57
|
27
|
30
|
60
|
63
|
98
|
80
|
79
|
13
|
10
|
20
|
17
|
9
|
14
|
13
|
M5
|
35
|
○
|
|
FF30
|
36/40
|
30
|
62
|
30
|
32
|
61
|
75
|
117
|
95
|
93
|
11
|
12
|
17
|
18
|
11
|
17
|
15
|
M6
|
40
|
○
|
