ANGULAR CONTACT THRUST SPHERICAL PLAIN BEARINGS
|
Model No.
|

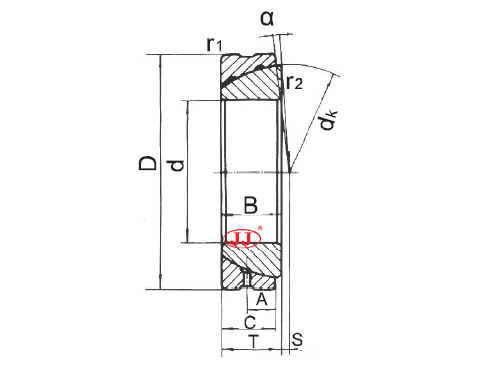

Dimensions(mm)
|
Load ratings kN
|
Weight≈kg
|
Inventory
|
| d |
D |
B |
C |
T |
dk |
S |
A |
r1r2(min) |
a°≈ |
Load ratings kN/Dynamic |
Load ratings kN/Static |
|
GACZ12S
|
12.7
|
22.225
|
6.86
|
4.83
|
7.62
|
18.26
|
1.3
|
2.39
|
0.51
|
7
|
6
|
18
|
0.013
|
○
|
|
GACZ12S
|
0.5
|
0.875
|
0.27
|
0.19
|
0.3
|
0.719
|
0.051
|
0.094
|
0.02
|
7
|
6
|
18
|
0.013
|
○
|
|
GACZ15S
|
15.875
|
26.988
|
8.64
|
6.35
|
9.40
|
22.83
|
1.48
|
2.77
|
0.76
|
6
|
10
|
31
|
0.025
|
○
|
|
GACZ15S
|
0.625
|
1.0625
|
0.34
|
0.25
|
0.37
|
0.899
|
0.058
|
0.109
|
0.03
|
6
|
10
|
31
|
0.025
|
○
|
|
GACZ19S
|
19.05
|
31.75
|
10.41
|
7.87
|
11.18
|
27.43
|
1.79
|
3.18
|
1
|
6
|
16
|
47
|
0.038
|
○
|
|
GACZ19S
|
0.75
|
1.25
|
0.41
|
0.31
|
0.44
|
1.08
|
0.07
|
0.125
|
0.04
|
6
|
16
|
47
|
0.038
|
○
|
|
GACZ22S
|
22.225
|
36.513
|
12.19
|
9.65
|
13.21
|
31.95
|
2.02
|
4.37
|
2
|
5.5
|
22
|
66
|
0.049
|
○
|
|
GACZ22S
|
0.875
|
1.4375
|
0.48
|
0.38
|
0.52
|
1.258
|
0.08
|
0.172
|
0.08
|
5.5
|
22
|
66
|
0.049
|
○
|
|
GACZ25S
|
25.4
|
41.275
|
13.97
|
11.18
|
15.24
|
36.50
|
2.54
|
5.16
|
2
|
6
|
29
|
87
|
0.085
|
○
|
|
GACZ25S
|
1
|
1.625
|
0.55
|
0.44
|
0.6
|
1.437
|
0.1
|
0.203
|
0.08
|
6
|
29
|
87
|
0.085
|
○
|
|
GACZ31S
|
31.75
|
50.8
|
17.78
|
13.97
|
18.80
|
45.59
|
3.36
|
5.94
|
2
|
6
|
47
|
142
|
0.159
|
○
|
|
GACZ31S
|
1.25
|
2
|
0.7
|
0.55
|
0.74
|
1.795
|
0.132
|
0.234
|
0.08
|
6
|
47
|
142
|
0.159
|
○
|
|
GACZ34S
|
34.925
|
55.562
|
19.56
|
15.24
|
21.34
|
49.20
|
3.69
|
7.14
|
2.54
|
4
|
53
|
159
|
0.213
|
○
|
|
GACZ34S
|
1.375
|
2.1875
|
0.77
|
0.6
|
0.84
|
1.937
|
0.145
|
0.281
|
0.1
|
4
|
53
|
159
|
0.213
|
○
|
|
GACZ38S
|
38.1
|
61.913
|
21.34
|
16.76
|
23.11
|
54.74
|
3.93
|
7.92
|
2.54
|
5.5
|
66
|
197
|
0.301
|
○
|
|
GACZ38S
|
1.5
|
2.4375
|
0.84
|
0.66
|
0.91
|
2.155
|
0.155
|
0.312
|
0.1
|
5.5
|
66
|
197
|
0.301
|
○
|
|
GACZ44S
|
44.45
|
71.438
|
24.89
|
20.07
|
27.18
|
63.88
|
4.72
|
8.33
|
2.54
|
6
|
91
|
273
|
0.458
|
○
|
|
GACZ44S
|
1.75
|
2.8125
|
0.98
|
0.79
|
1.07
|
2.515
|
0.186
|
0.328
|
0.1
|
6
|
91
|
273
|
0.458
|
○
|
|
GACZ50S
|
50.8
|
80.962
|
28.70
|
23.37
|
31.24
|
73.02
|
5.51
|
9.52
|
3.56
|
5.5
|
122
|
365
|
0.671
|
○
|
|
GACZ50S
|
2
|
3.1875
|
1.13
|
0.92
|
1.23
|
2.875
|
0.217
|
0.375
|
0.14
|
5.5
|
122
|
365
|
0.671
|
○
|
|
GACZ57S
|
57.15
|
90.488
|
32.26
|
26.67
|
35.31
|
82.17
|
6.18
|
11.51
|
3.56
|
5.5
|
155
|
466
|
0.948
|
○
|
|
GACZ57S
|
2.25
|
3.5625
|
1.27
|
1.05
|
1.39
|
3.235
|
0.243
|
0.453
|
0.14
|
5.5
|
155
|
466
|
0.948
|
○
|
|
GACZ63S
|
63.5
|
100.013
|
36.07
|
29.97
|
39.12
|
91.19
|
6.79
|
12.7
|
3.56
|
5
|
196
|
589
|
1.13
|
○
|
|
GACZ63S
|
2.5
|
3.9375
|
1.42
|
1.18
|
1.54
|
3.59
|
0.267
|
0.5
|
0.14
|
5
|
196
|
589
|
1.13
|
○
|
